24 Hours Delivery 1.6mm FR4 HAL Double Sided Prototype PCB
Abis Circuits Co. Ltd, established in 2006, Located in Shenzhen, our company has about 1100 workers and two PCB workshops with about 50000 square meters.
Our products are mostly used in the field of Industrial Control, Telecommunication, Automotive products, Medical, Consumer, Security, and others.
Now we have passed ISO9001, ISO14001, UL, etc., With constant hard work of our staff and ongoing support from customers both home and abroad, we can provide up to 20 layers, Blind and buried Board, high-precision(Rogers), High TG, Alu-base and flexible boards to our customer with fast turn and high-quality level.
1. Single, Double side & Multi-layer PCB.
2. Buried/Blind Vias, Via in Pad, Counter Sink Hole, Screw Hole(Counterbore), Press-fit, Half Hole.
3. HASL lead-free, Immersion Gold/ Silver/Tin, OSP, Gold plating/finger, Peelable mask,
4. Printed Circuit Boards adhere to IPC Class 2 & 3 international PCB standards.
5. Quantities range from prototype to medium&big batch production.
6.100% E-Test.
Our perfect management, advanced equipment, and professional staffs are the keys for us to fight to win more market shares with other competitors. Customer satisfaction and support are what we have been strived for.
Capacity:
| Raw material | FR-4, Metalcore, Cu base, Polymide, Ceramic, Rogers, etc. |
| Layer | 1 Layer-20 Layer |
| Min.Line width/space | 3mil/ 3mil (0.075mm/0.075mm) |
| Min. hole size | 0.1mm (drilling hole) |
| Max. Board size | 1200mm*600mm |
| Finished board thickness | 0.2mm-6.0mm |
| Copper foil thickness | 18um- 280um (0.5oz-8oz) |
| NPTH Hole Tolerance | +/- 0.075mm |
| PTH hole Tolerance | +/-0.05mm |
| Outline tolerance | +/-0.13mm |
| Surface finished | Lead-Free HASL, immersion gold(ENIG), Immersion silver, OSP, gold plating, gold finger, Carbon INK |
| Production capability | 60,000 s.q.m/ month |
| Certificate | ROSH, ISO9001, ISO14001, UL Certificate |
| File | Protel 99se/P-CAD/Autocad/Cam350 |
| Monthly Capacity |
| Small volume and quick turn | Reached 12,000 sqm per month, 2000+ types quick turn PCB in 2018. |
| |
| High volume | Reached 60,000 sqm per month in 2018 |
| |
| 2019 plan | Reach 100,000 sqm and 3000+ types quick turn PCB per month |
FAQ:
Q1: How can I get a quotation:
. Please send gerber file with format: .PCB / .P-CAD / .DXP / .Gerber
Q2: Can you manufacture my PCBs from a picture file?
. Could you please provide a sample?
Q3: Do you have PCB in stock?
. Most of our PCB board are customized, which according to Gerber file.
. ABIS has samples in stock that could be sent to you for quality checking always.
Q4: What board manufacturer do you use for FR4?
. Main Suppliers(FR4): Kingboard (Hong Kong), NanYa (Taiwan), and Shengyi (China).
Q5: Will my PCB files be checked?
. Checked within 12 hours. Once Engineer's question and working file be approved, production will start.
Q6: What do you require in order to produce an assembly quotation?
. Bill of materials (BOM) detailing:
a), manufacturers parts numbers,
b), components suppliers' parts number (e.g. Digi-key, Mouser, RS )
c), PCBA sample photos if possible.
d), Quantity

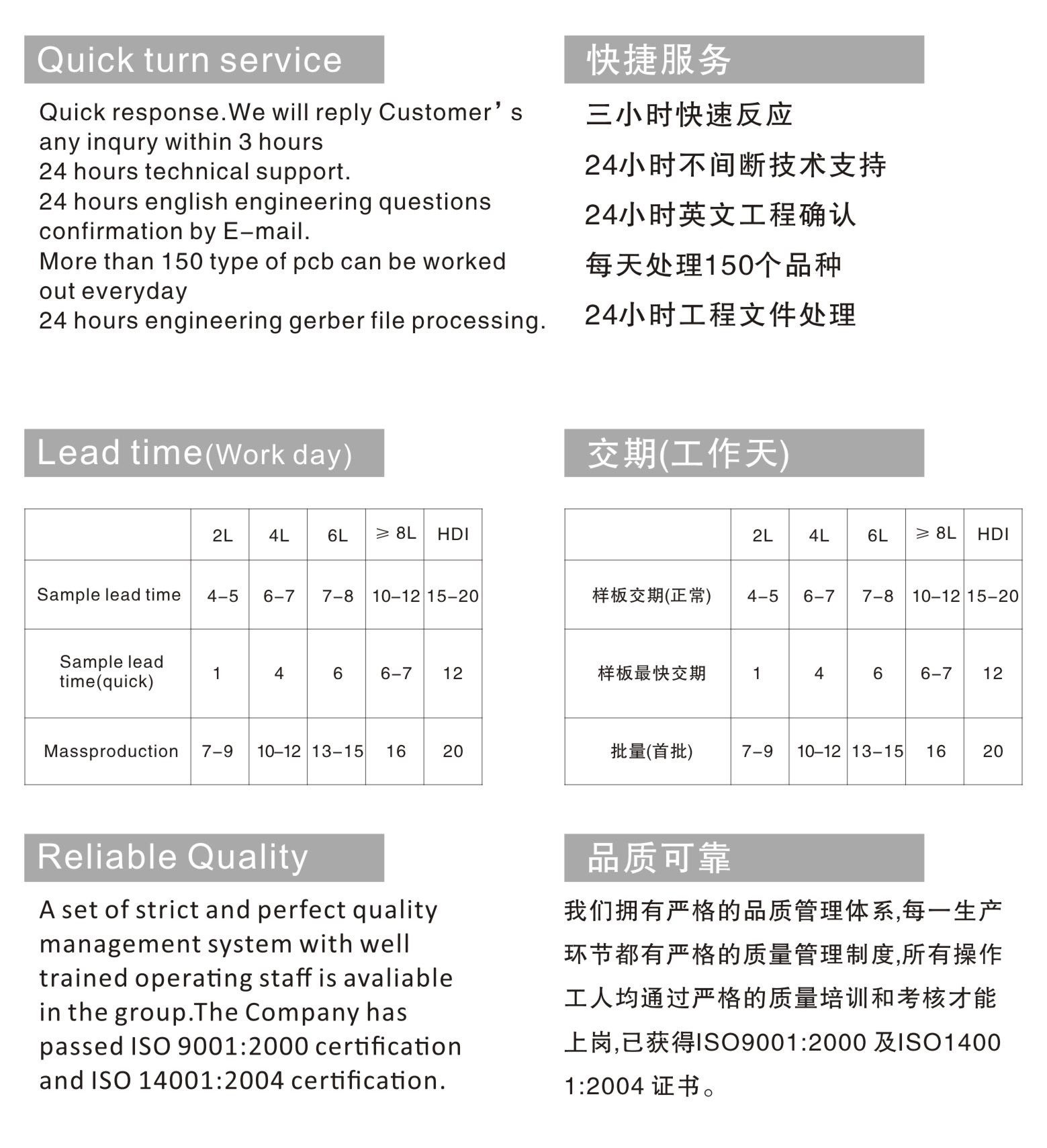

Quick turn service& Lead time

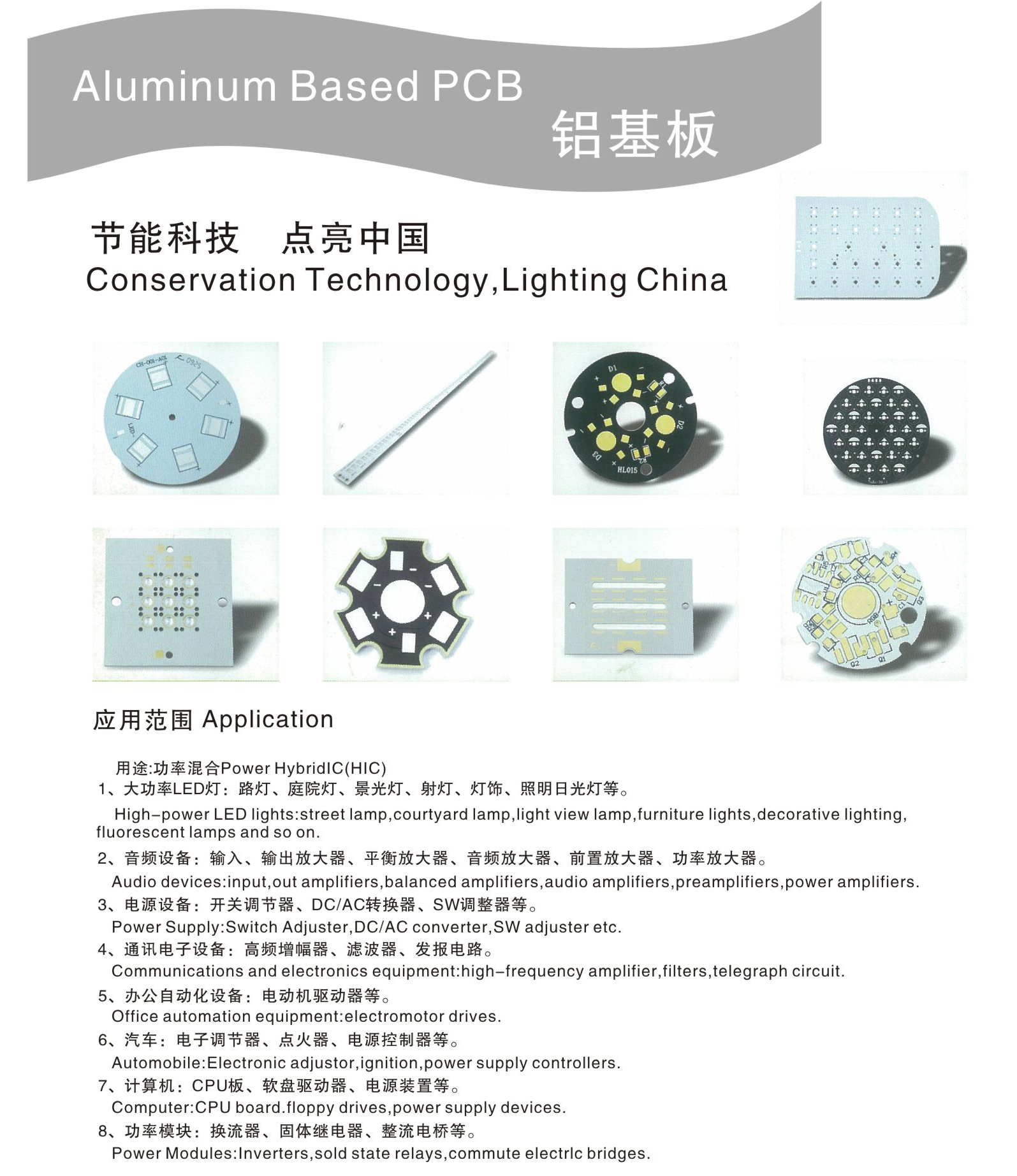

MCPCB
ABIS cares every your order even 1 piece
