Abis Circuits C o., Ltd is a professional PCB manufacturing which is focus on double side, Multilayer and HDI pcb mass production. The company was established on Oct,2006.we have two factories together ,The factory in Shenzhen is specialized in small to middle volume orders and the factory in shaoguan,GuangDong Province is for big volumn and HDI.
Nowadays we have more than 1100 employees over the two factories to cope with increasing demand. Factory Operation plant space (I) 10000 Square meters (II) 40000 Square Meters Employees (I) 300 Man Powers (II) 800 Man Powers Eng.Technical (I) 20 QA QC Engineers (II) 60 QA,QC Engineers
Quality Control
1.ABIS certified facilities control all key processes to eliminate all potential issues before produce
2.ABIS utilizes advanced software to perform extensive DFM analysis on incoming data, and uses advanced quality control systems throughout the manufacturing process.
3.ABIS performs 100% visual and AOI inspection as well as performing electrical testing, High Voltage testing, impedance control testing, micro-sectioning, thermal shock testing, solder testing, reliability testing, insulating resistance testing and ionic cleanliness testing
.
| Model NO. | Aluminum PCBO1 | | Mechanical Rigid | Rigid |
| Material | Fr4,Rogers,Aluminum | Brand | ABIS |
| certificate | UL/ISO/Ts16949/RoHS/Ts16949 | solder Mask Color | Green Black Blue white |
| Number of Layer | 1-22Layers | service | Professional Engineer,Good After Service,Competiti |
| PCB Standard | lpc-a-610 D/lpc-lll Standard | Hole Tolerance | pth:±2mil, Ntph:±2mil |
| Board Thickness Tolerance | ±10% | lmpedance Control Tolerance | ±5% |
| Testing service | 100%AoiTesting.100%Et Testing,100% Fqc | PCB Assembly Process | DIP.SMT PCB Assembly |
| Copper Thickness | 0.5oz-80z | Board Thickness | 0.2mm-4mm |
| Min. Hole Size | 0.1mm-1mm | Min.Line Width | 3mil-10mil |
| Min.Line Spacing | 2mil | Transport Package | by Vacuum Packing in cartons |
| Origin | shenzhen, China | Delivery | 12 working days |
Pre-Sale and After-Sale Service:
1 Hour quotation
2 hours complaint feedback
7*24 hour technical support
7*24 order service
7*24 hour delivery
7*24 production run
FAQ
Q1:Are you a factory or trade company?
A: Abis is a PCB/FPC/PCBA manufacturer/factory. We pecialize in PCB/PCBA Board for 12 years.
Q2:Is my PCB file safe if I send it to you for manufacturing?
A: We respect customer's design authority and will never manufacture PCB for someone else without your permission. NDA is acceptable.
Q3:What is your testing policy and how you control the quality?
A: For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be more faster. Due to there's many steps to PCB production, we usually do inspection after every step.
Q4: What's your shipping way ?
A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT,EMS.
2. If you have your own forwarder, we can cooperate with them.
Q5: What is your certificate?
A: ISO9001:2015, ISO14001: 2015, UL, SGS report.
Q6: What files should we offer?
A: If only need PCB, please provide Gerber File and manufacturing specifications; If need PCBA,Please provide Gerber File, Manufacturing specification, BOM list and Pick & Place/XY file.
Q7: Can I get a sample?
A: Yes, It's reasonable to get a sample to test our quality at first.
Q8: Why choose us?
A: With ABIS, customers significantly and effectively reduce their global procurement costs. Behind each service provided by ABIS, is hidden a cost saving for customers.
. We have two shop together, one is for prototype, quick turn, small volume making. The other is for mass production also for HDI board, with highly skilled professional employees, for high quality products with competitive price and on-time delivery.
. We provide very professional sales, technical and logistic supports, on a world-wide basis.hours complaint feedback
Product Tags:
|
|

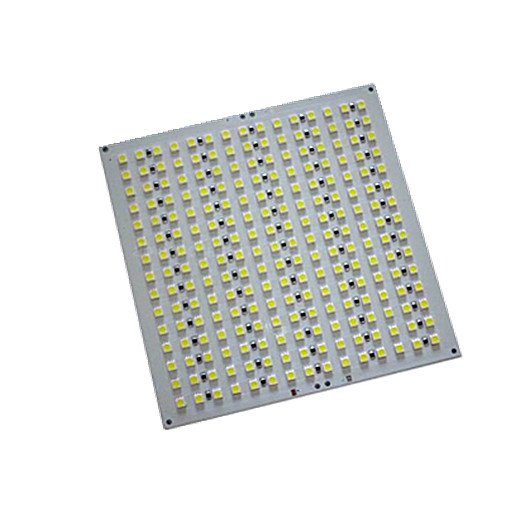

Aluminum LED Light PCB Board Images
|
